Aluminum Forming Systems, Wall Ties, Pins, Wedges
Product Introduction:
The America Aluminium Formwork is normally fixed by Nominal Wall Tie or Full Wall Tie. The main parts to fix the formwork include the Wedge and Pin. There are three kinds of Pins can be chosen. One kind is the Flat Head Pin, the second is the Round Head Pin and the third one is the Combo Filler Pin. There are two different kinds of Wedges to be used. One is the Flat Wedge and another is the Curved Wedge.
- Parameters
Product Introduction:
The America Aluminium Formwork is normally fixed by Nominal Wall Tie or Full Wall Tie. The main parts to fix the formwork include the Wedge and Pin. There are three kinds of Pins can be chosen. One kind is the Flat Head Pin, the second is the Round Head Pin and the third one is the Combo Filler Pin. There are two different kinds of Wedges to be used. One is the Flat Wedge and another is the Curved Wedge.
Aluminum Forming Systems, Wall Ties, Pins, Wedges
Commodity | Weight | Material | Production Progress | ||

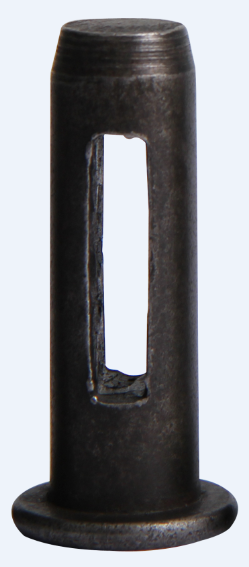

Flat Head Pin |  | 71 g | 0.1565 lbs | 45# steel | heat treatment |
Round Head Pin |  | 103 g | 0.2270 lbs | ||
Round Head Pin |  | 110 g | 0.2425 lbs | ||
Comobo Pin |  | 178 g | 0.3924 lbs | ||
Commodity | weight | Material | Production Process | ||
Straight Wedge |
| 49.2 g | 0.1085 lbs | 45#steel | heat treatment |
Curved Wedge |
| 49.4 g | 0.1089 lbs | ||
Commodity | Wall Size | |
Full Tie Round Head |
| 6",8"'9"10"12" |
Nominal TIe Round Head | 6",8"10"12" |
The America Aluminium Formwork is normally fixed by Nominal Wall Tie or Full Wall Tie. The main parts to fix the formwork include the Wedge and Pin. There are three kinds of Pins can be chosen. One kind is the Flat Head Pin, the second is the Round Head Pin and the third one is the Combo Filler Pin. There are two different kinds of Wedges to be used. One is the Flat Wedge and another is the Curved Wedge.
