Korea Formwork Wedge Standard Wedge Bolt Hebei Concrete Form Flat Tie

Korea Formwork Wedge Standard Wedge Bolt Hebei Concrete Form Flat Tie

Euro Form Accessories
Commodity	Type	Specification	Packing	Main Market
	Flat Tie	Length:100L-1200L Thickness:1.6mm-2.5mm    Other Sizes Available	Bundle+Pallet	Korea/Middle Asia

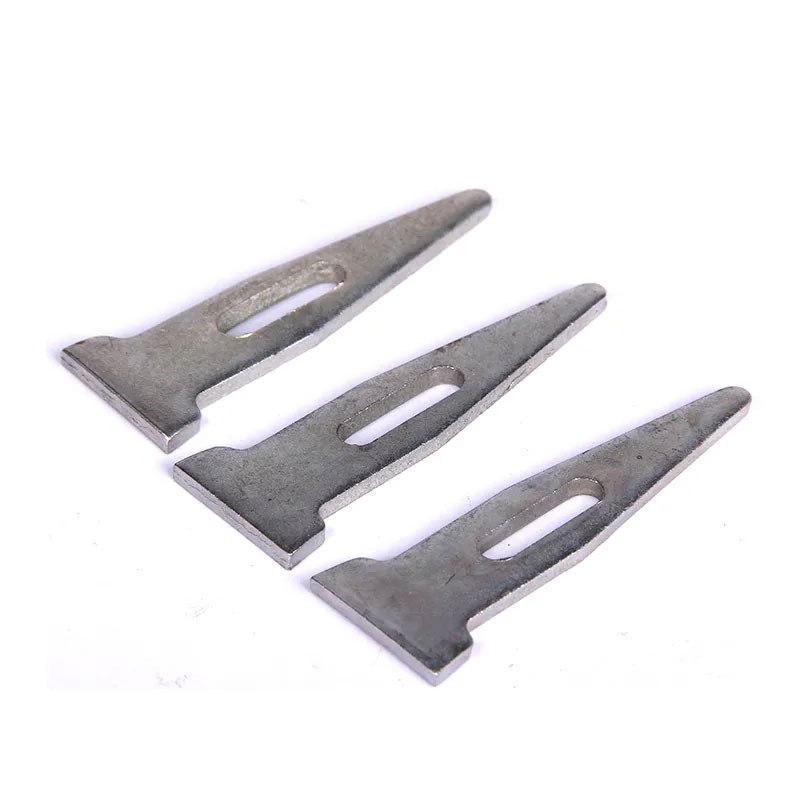

	Wedge Pin	Length 76mm/79mm   Other Sizes Available	Small Bag+Ton Bag	Korea/Middle Asia
	Hooks	Round Type Square Type	Small Bag+Ton Bag	Widely Using
	X Flat Tie	Standard Flat Tie 4"-48" Ultimate 6000lbs   Heavy Duty Flat Tie 4"-48"  Ultimate 7000lbs   Other Sizes Available	Bundle+Pallet	America/Europe
	Wedge Bolt	Short Wedge Bolt  Standard Wedge Bolt Long Wedge Bolt Adjustable Wedge Bolt	Pail+Pallet	America/Europe
Related Products	Aluminum Formwork System, Plywood Snap Tie System

Korea Steel Formwork System includes the Wedge Pin, Flat Tie, L Hook, Spa Tie and etc. Formwork for concrete structures is more important in order to get perfect dimensions of structural parts. Accessories used in formwork will also play a key role in it. Form ties are important accessories of formwork.

American X Flat Tie Steel plywood Formwork Accessories - Wall Ties and Wedge Bolt Wedge pins are used with flat tie to tighten adjoining concrete forms, securing the flat tie and concrete form in place. The full set of the Symons Formwork Accessories including the Wedge Bolt, Long Bolt, Short Bolt, X-Flat Tie, One Piece Waler Clamp, Z Tie Holders & Waler Tie, J-Strongback Hooks and Strongback Ties, Scaffold Brackets and Turnbuckles.

Euro Form Formwork System
Item	Material	Specification	Surface Treatment
F Profile	Steel #45	F100	Self Color
		F200
		F250
		F300
		F350
		F400
		F500
		F600
		F1200
		F1500
		F1800
Euro Form (Korean Type or American Type)	Steel #45	600*1200mm & 1800mm	Painted
		550*1200mm & 1800mm
		500*1200mm & 1800mm
		450*1200mm & 1800mm
		400*1200mm & 1800mm
		350*1200mm & 1800mm
		300*1200mm & 1800mm
		250*1200mm & 1800mm
		200*1200mm & 1800mm
		600*900mm & 1500mm
		550*900mm & 1500mm
		500*900mm & 1500mm
		450*900mm & 1500mm
		400*900mm & 1500mm
		350*900mm & 1500mm
		300*900mm & 1500mm
		250*900mm & 1500mm
		200*900mm & 1500mm
Inside Corner	Steel #45	100*100*900mm	Painted
		100*100*1200mm
		100*100*1500mm
		100*150*1200mm
		100*150*1500mm
		100*200*900mm
		100*200*1200mm
		100*200*1500mm
		150*150*900mm
		150*150*1200mm
		150*200*900mm
		150*200*1200mm
		150*200*1500mm
		200*200*900mm
		200*200*1200mm
		200*200*1500mm
Outside Corner	Steel #45	63*63*900mm	Painted
		63*63*1200mm
		63*63*1500mm
		63*63*1800mm
		63*63*2400mm
		63*63*3000mm

Conveniently located handles make set up, stripping and handling easier.With proper care contractors can expect that forms will be able to be reused up to 200 times before plywood needs to be replaced.Compatible with all other industry standard modular handset systems.All sizes of heavy duty loop ties, x-flat ties, wedge bolts, and accessories to offer the complete system.

Steel Ply Forming System is very popular for wall concrete construction.

We are offering steel framed formwork system. the full name of 63 steel frame formwork system is 63 steel frame plywood build-up formwork system, its stiffness is high and the surface is smooth, could be braced and dismantle wholly or separately. 63 steel frame formwork system is made up by steel frame, reinforcing rib and waterproof plywood. Frame is the f steel with retainer rib of surface, there are holes at the edges. The reinforcing rib uses the angle iron, the material of steel frame and reinforcing rib is 45# steel. The corner oblique iron and reinforcing place joint with the surface panel by plow bolts. Surface panel uses the 12mm thickness waterproof plywood. Lateral pressure coefficient is 50kn/m2.
