Spacer X Flat Tie for Panel Formwork

X-Flat Tie for Panel Formwork

Spacers for Formwork

Length: 200mm

Width: 20mm

Thickness: 2mm

Material: Steel

Wall thickness: 10-150cm

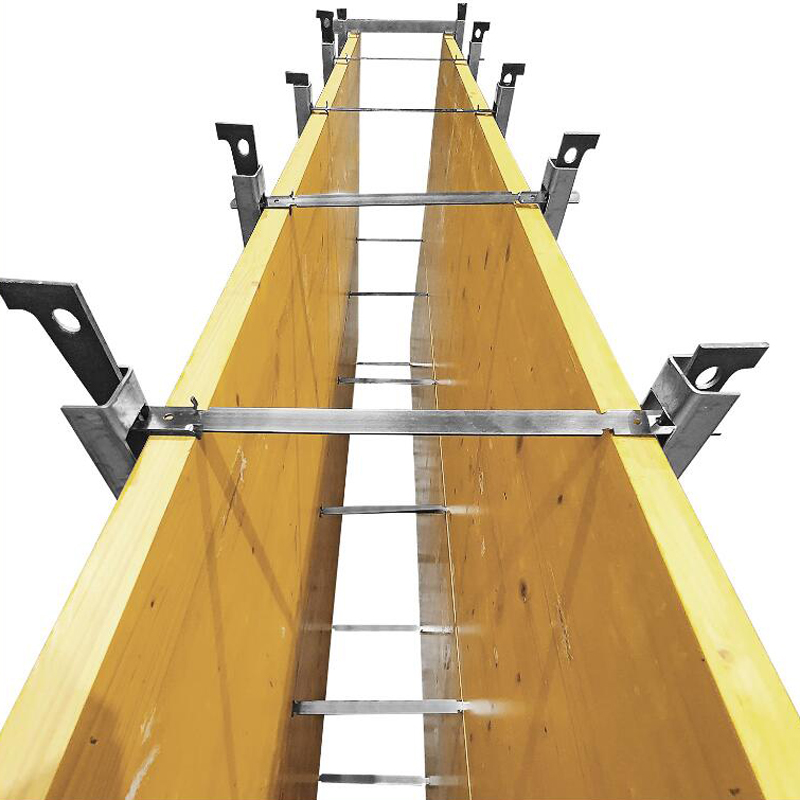

Application: Used for wood panel formwork

X-Flat Wall Tie is made of steel with certain strength and pressure. Different sizes are used for different wall thicknesses, and the length varies from 10cm to 150cm.

Photo	Name	Wall Thickness	Material	Packing
	Spacer X Flat Tie	10cm	Carbon Steel	Pallet
		12cm
		15cm
		20cm
		25cm
		30cm
		35cm
		40cm
		50cm
		......
		150cm

Photo	Item	Size	Material	Surface	Packing
	Wedge Pin	79mm	carbon steel	Galvanized or as Nature	bags

Steel Plywood Formwork X-Flat Tie System
Photo	Size	Weight	Ultimate Load	Surface	Packing
	4"	103.98g	6000LBS	Black	10000pcs/pallet
	5"	110.90g
	6"	119.81g
	8"	141.21g
	9"	151.91g
	10"	162.61g
	12"	184.01g
	14"	205.41g			5000pcs/pallet
	15"	216.11g
	16"	226.81g
	18"	248.21g
	20"	269.61g			2500pcs/pallet
	22"	291.01g
	24"	312.42g
	26"	333.82g
	28"	355.22g
	30"	376.62g
	32"	398.02g
	34"	419.42g
	36"	440.82g
	38"	462.22g
	40"	483.62g
	42"	505.02g
	44"	526.42g
	46"	547.82g
	48"	569.22g
Heavy Duty X-Flat Tie Available!

X-Flat Tie: X-Flat Tie are used with Wedge Bolt to secure and space modular forms. X Flat Ties are available from 4" to 24". And other sizes can be produced according to clients' demand.

Wedge Bolts: Wedge Bolt connect panels and ties together,eliminating the need for special tools or equipment in the set up process. Two idential wedge bolts work as a single lock-bolt set, connecting and clamping together. However, additional bolts may be needed for walker attachment, scaffold brackets and etc.

Long Bolts: similar to a wedge bolt, these Long Bolt connect the 1, 1-1/2 and 2 inch steel fillers, and are punched with two 1/4 inch hole to make room for 16 or 20 D nails.

Short Bolts: short bolts are used to attach the pilaster form a steel ply form. They eliminate the need for short stop wedge bolt, and upon proper installation, make stripping much easier.

One Piece Waler Clamp: One Piece Waler Clamps attach through the wedge bolt slot of modular type forms to provide wedge action aligning with single or double lumber.

Z Tie Holder & Waler Ties: Z Tie Holders are used in conjunction with Waler Ties to secure double 2 x lumber wales to modular type forms. The Waler Tie is available in two sizes to accomodate 2x4, 2x6 lumber.
